Air source heat pumps

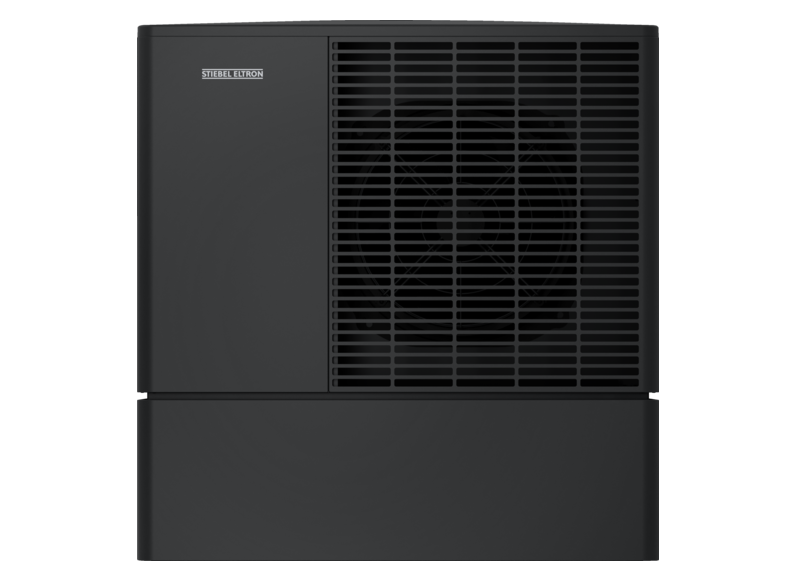

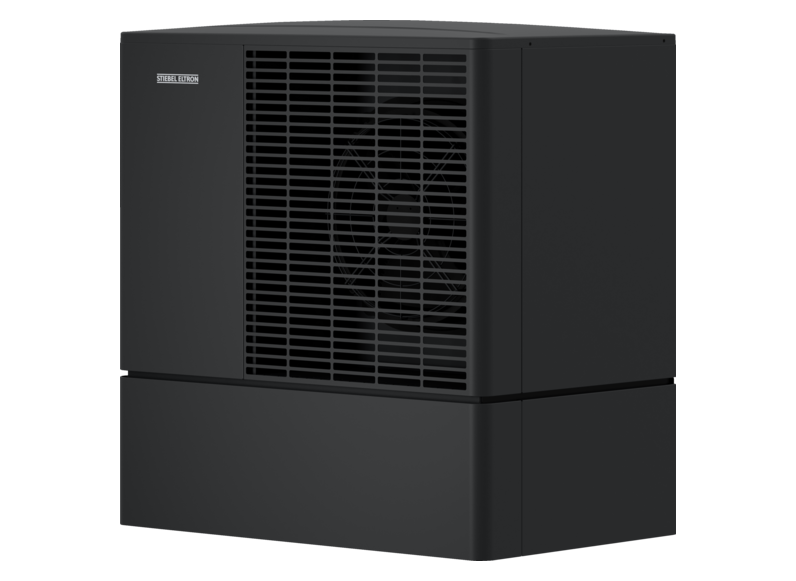

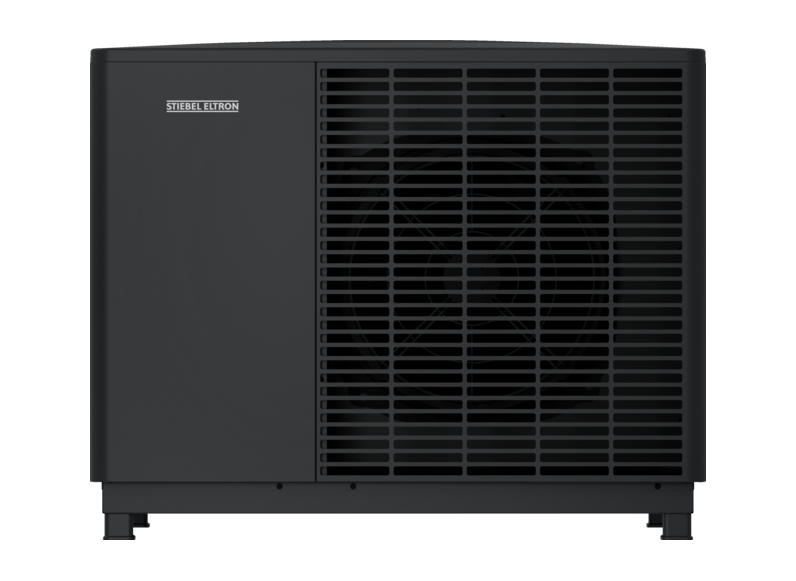

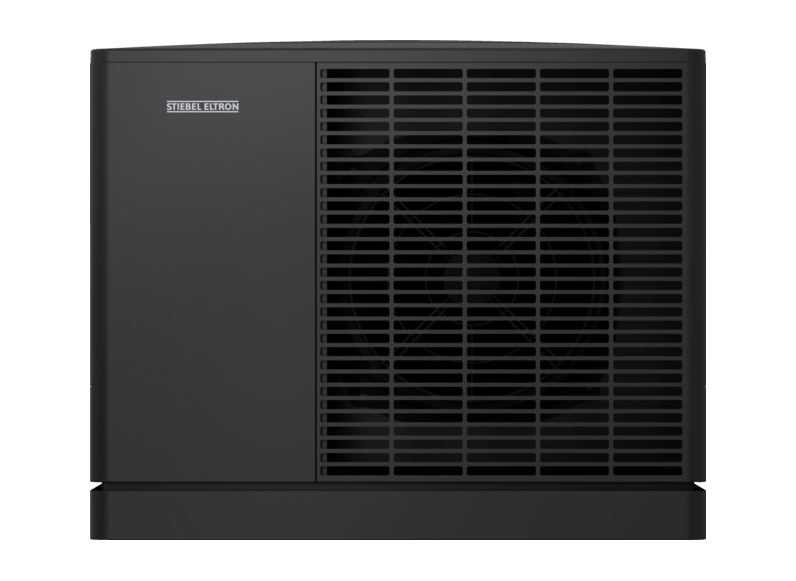

HPA-O 10.2 Trend HC 230

  • Product details

    Heating comfort regardless of modernisation status

    This air source heat pump installed outdoors for heating, cooling and hot water is a smart choice for you and the environment – be it for new build or modernisation. Your existing building can also be heated extremely efficiently, regardless of its modernisation status. And this is universally possible, via classic radiators or underfloor heating. Even at the lowest outside temperatures, you can enjoy cosy warmth and unbeatable hot water convenience at all times. In summer, you also have the option of cooling your home via underfloor heating.

    Simply adaptable

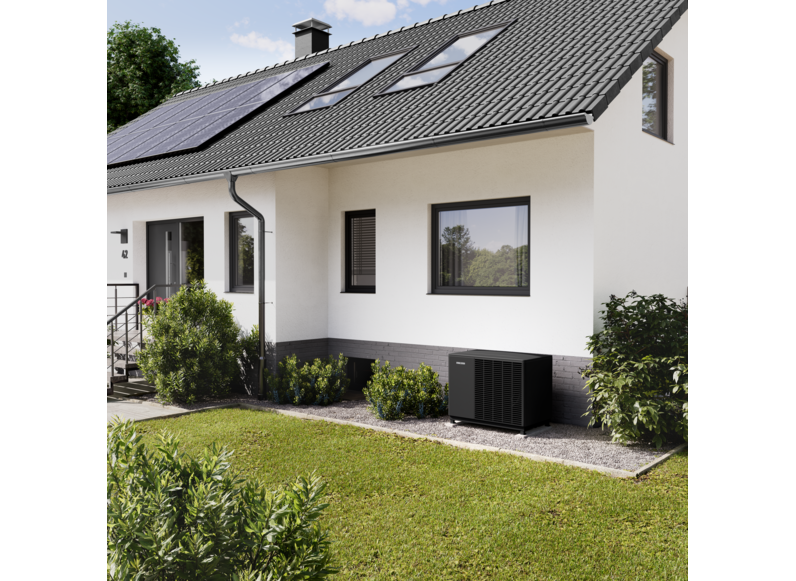

    On your flat roof, outside on the house wall or simply on the ground – with the right accessories and thanks to its extremely quiet operation, you have all the options for installing your heat pump. And it can be controlled just as flexibly. A few degrees warmer or pleasantly cooler – it’s up to you. Because you can control your preferred temperature easily and conveniently via app or touchscreen display.

    Makes your home efficiently eco-friendly

    Thanks to the natural refrigerant used and this specially designed heat pump, you can heat even more efficiently and in a more eco-friendly way to deliver benefits that pay off for you as well as for our climate. Do you own a photovoltaic system or are you planning on installing one? It can also be seamlessly integrated to utilise self-generated electricity for even greater cost savings.



    ERP product datasheet
    Technical datasheet

    Product Number: 207422

    SCOP 35 °C (EN 14825): 4.59

    Energy efficiency class, room heating in moderate climates, average temperature applications (A+++ → D): A++

    Heating output at A2/W35 (EN 14511): 5.87 kW

    Heating output at A-7/W35 (EN 14511): 9.49 kW

    Cooling capacity at A35/W18: 8.94 kW

    COP at A2/W35 (EN 14511): 3.96

    COP at A-7/W35 (EN 14511): 2.80

    Sound power level (EN 12102): 46 dB(A)

    Min./max. application limits for heat source: -25/40 °C

    Height: 960 mm

    Width: 1170 mm

    Depth: 727 mm

    Weight: 150 kg

    Refrigerant: R290

    Colour: anthracite

    Show all

    Download as PDF

    Equipment datasheet
