Air source heat pumps

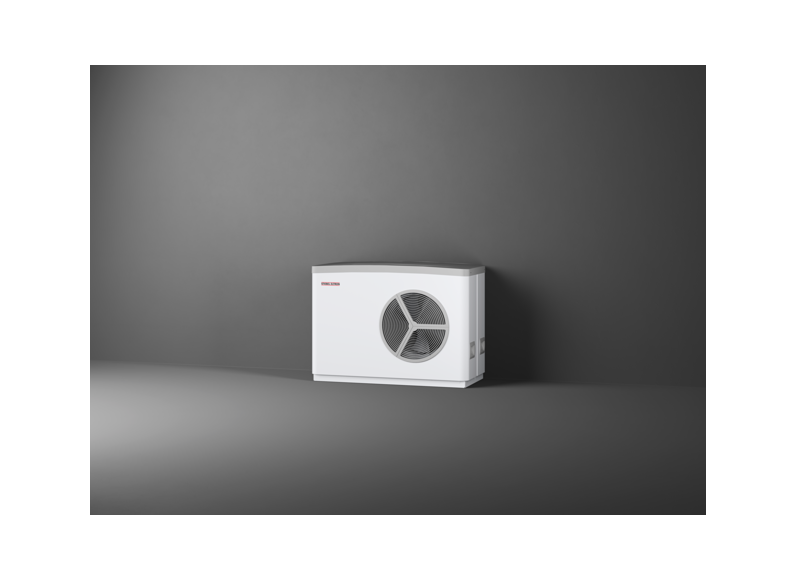

WPL-A 07 HK 230 Premium

  • Product details

    Create a pleasant climate all round

    This air source heat pump doesn't just take care of your heating and hot water. In the summer months, it can also provide cooling. And even at outside temperatures as low as minus 25 °C, it achieves high flow temperatures for pleasant room heating and high hot water convenience. This inverter appliance therefore offers you a valuable service, no matter whether you are building a new home or modernising an older one.

    Doing the environment a good turn

    The models in this series are set up to use a particularly futureproof refrigerant. Combined with an excellent efficiency level, this heat pump raises your environmental conscience in building services to a new high.

    ERP product datasheet
    Technical datasheet

    Product Number: 200123

    Energy efficiency class, room heating in moderate climates, average temperature applications: A+++

    Heating output at A2/W35 (EN 14511): 4.30 kW

    Heating output at A-7/W35 (EN 14511): 6.87 kW

    Cooling capacity at A35/W18: 10.15 kW

    COP at A2/W35 (EN 14511): 4.30

    COP at A-7/W35 (EN 14511): 2.93

    Energy efficiency ratio at A35/W18: 2.87

    SCOP 35 °C (EN 14825): 4.88

    Sound power level (EN 12102): 48 dB(A)

    Min./max. application limits for heat source: -25/40 °C

    Min. application limit on heating side: 15 °C

    Max. application limit on the heating side: 75 °C

    Height: 900 mm

    Width: 1270 mm

    Depth: 593 mm

    Weight: 135 kg

    Refrigerant: R454C

    Show all

    Download as PDF

    Equipment datasheet
