Central

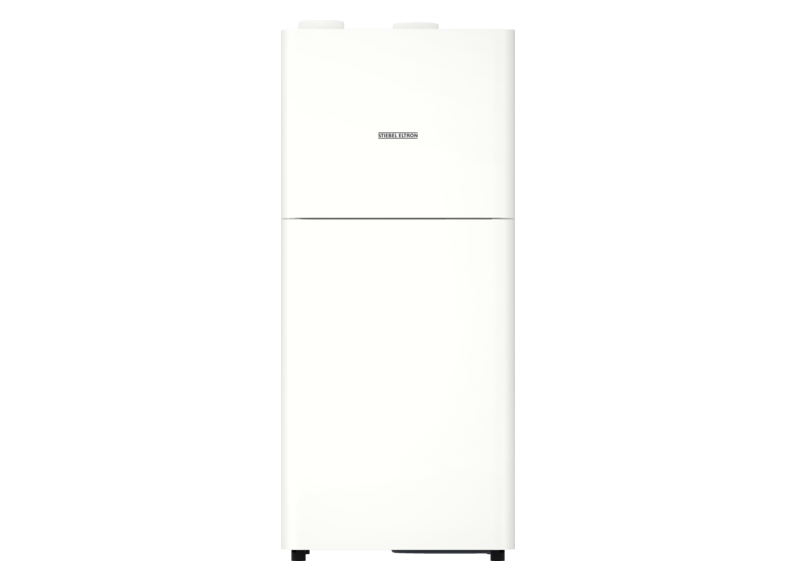

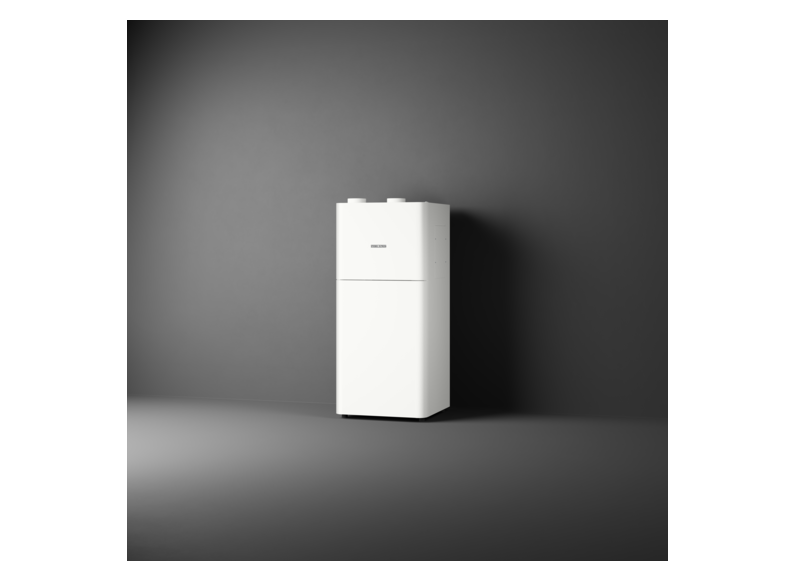

LWZ 07.1 Premium HKL 230

  • Product details

    Combine four functions in one innovative appliance with additional option

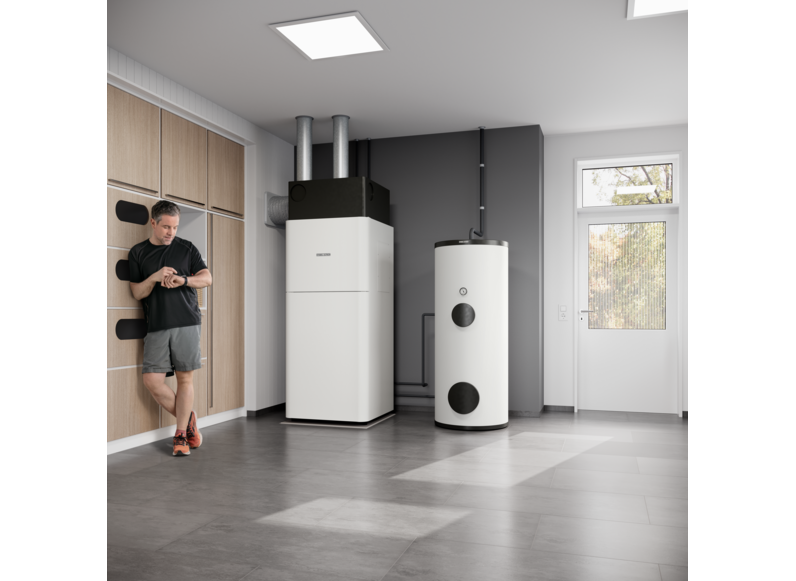

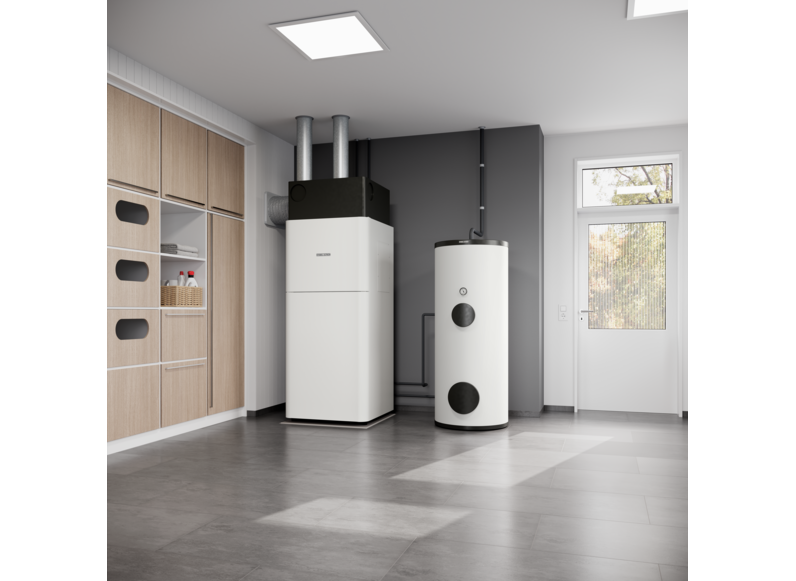

    Do you love convenience? Then this compact integral unit is perfect for you. Combined with an external hot water cylinder of your choice, you get everything you want in just one appliance: heating, cooling, ventilation, air purification and hot water on demand. The clear, elegant design of this highly efficient package conceals an air source heat pump. It heats or cools your rooms in line with demand. The high performance ventilation system ensures wonderfully clean air all year round through ventilation.

    Simply indulge yourself quietly

    Our compact appliance quietly creates the room temperature you prefer. Cosy hot water is also available when you turn on the tap, to satisfy your need for convenience. First rate thermal comfort, made even more efficient and environmentally friendly by the natural refrigerant. If required, you can also use our all-rounder to cool your rooms.

    Ventilate conveniently via your smartphone

    You benefit from all the advantages offered by a modern ventilation function. The outdoor air is efficiently filtered and thus protects against pollutants and allergens. At the same time, humidity is kept at an optimum level – the air in your rooms is neither too dry nor does it have the potential to form mould due to excess moisture. You can easily control all this convenience via an app on your smartphone or tablet.



    Technical datasheet

    Product Number: 206284

    Heat recovery level up to: 90 %

    Filter class: ePM1 ≥ 50 % (F7) | ISO Coarse ≥ 65 % (G4)

    Heating output at A-7/W35 (EN 14511): 6.42 kW

    Heating output at A2/W35 (EN 14511): 3.98 kW

    Power consumption at A-7/W35 (EN 14511): 2.39 kW

    Power consumption at A2/W35 (EN 14511): 1.13 kW

    SCOP 55 °C (EN 14825): 3.28

    Weight: 230 kg

    Height: 1880 mm

    Width: 800 mm

    Depth: 764 mm

    Energy efficiency class, room heating in moderate climates, average temperature applications (A+++ → D): A++
