Mini instantaneous water heaters
DEM 3 Set

  • Product details

    Application • This mini instantaneous water heater with electronic closed-loop control can supply DHW to one washbasin. • Can be operated with pressure taps or non-pressurised taps.

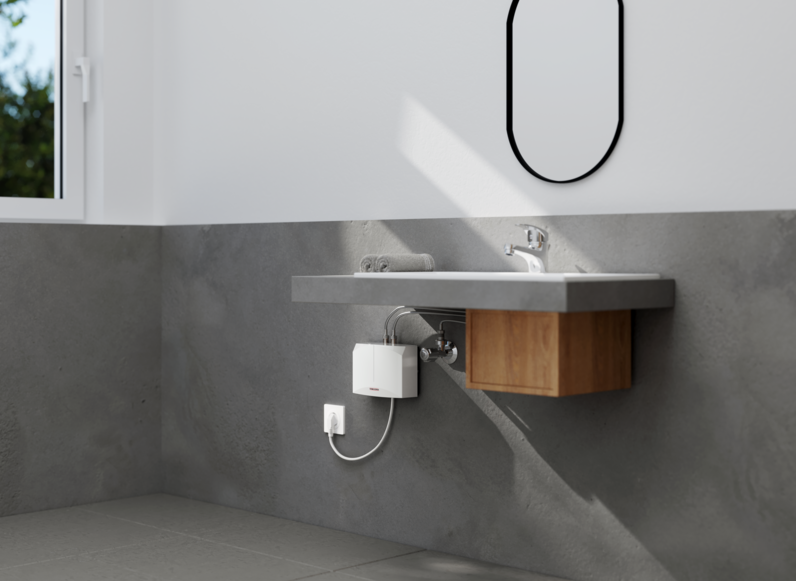

    Convenience features • Mini instantaneous water heater with closed-loop control, control electronics, outlet temperature sensor and variable flow rate limitation. • Accurate temperature delivery up to the maximum output. Internal temperature limiting • Including special aerator for perfect water flow pattern and integral flow controller for use in existing taps. • Anti-scalding protection for high inlet temperatures via automatic output matching. • Oversink or undersink installation possible.

    Efficiency • Electronic output control for energy efficient and water saving operation. The outlet temperature sensor and control electronics ensure that the set temperature is achieved to the exact degree. For this, only the amount of energy required is expended; there is no need to add cold water at the tap. • The water is heated directly at the draw-off point and only when required. This prevents the energy and water losses caused by long pipe runs. This ensures maximum energy efficiency. • Suitable for preheated water from solar thermal and heat pump systems.

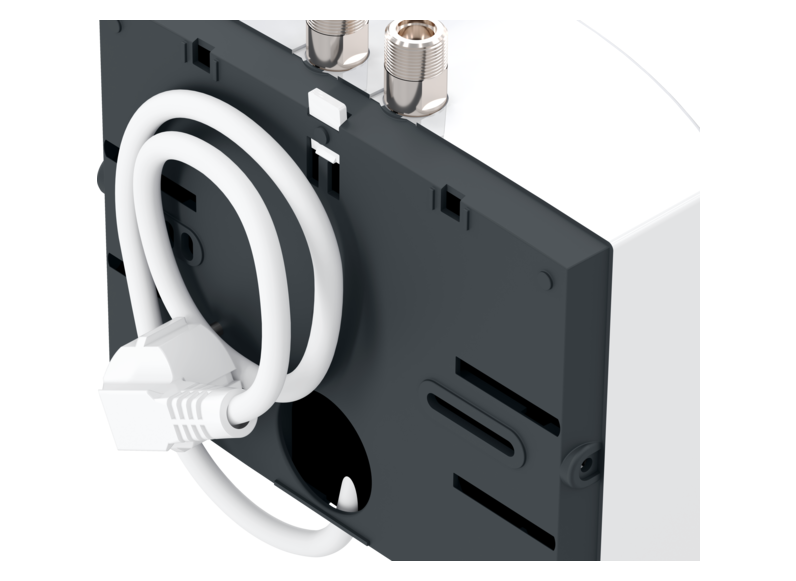

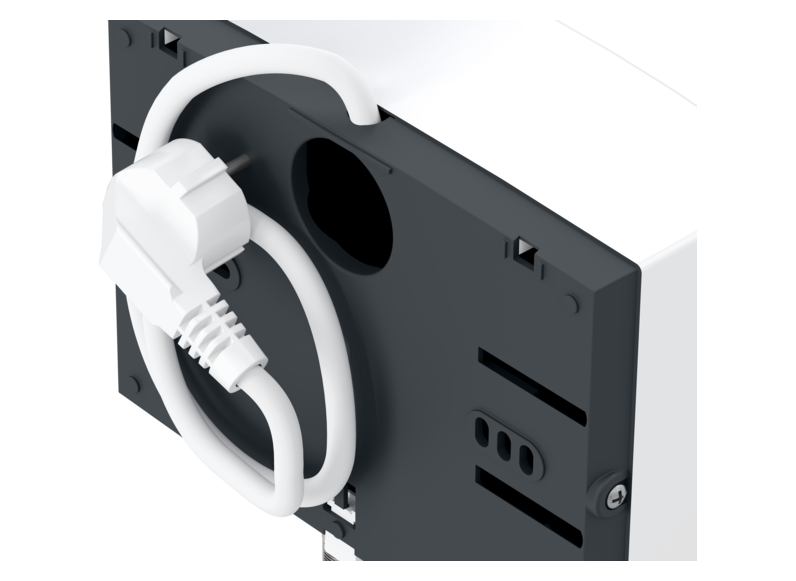

    Installation • Time saving and easy installation with the PROFI-RAPID installation system. Straightforward wall mounting with 2-point attachment. The back panel simultaneously acts as a drill template; slots compensate for drill hole discrepancies. • The appliance cover and internal assembly can be removed with just one hand movement. • Fast water connection thanks to external metal water fittings for direct, universal installation of taps. • Simple electrical connection as power cable is wired up as standard. • Fault analysis with LED diagnostic traffic light.

    Safety • Maintenance-free bare wire heating system, suitable for hard and soft water. • Safety system with high pressure switch and electronic temperature monitoring.

    ERP product datasheet
    Technical datasheet

    Product Number: 236584

    Rated voltage: 230 V

    Rated voltage 1: 200 V

    Rated voltage 2: 220 V

    Rated voltage 3: 230 V

    Rated voltage 4: 240 V

    Rated output: 3,53 kW

    Rated output 1: 2,7 kW

    Rated output 2: 3,2 kW

    Rated output 3: 3,53 kW

    Rated output 4: 3.8 kW

    Rated current: 15,2 A

    Rated current 1: 13,3 A

    Rated current 2: 14,5 A

    Rated current 3: 15,2 A

    Rated current 4: 15.8 A

    Fuse protection: 16 A

    Fuse protection 1: 16 A

    Fuse protection 2: 16 A

    Fuse protection 3: 16 A

    Fuse protection 4: 16 A

    Frequency: 50/60 Hz

    Frequency 1: 50/60 Hz

    Frequency 2: 50/60 Hz

    Frequency 3: 50/60 Hz

    Frequency 4: 50/60 Hz

    Phases: 1/N/PE

    Height: 143 mm

    Width: 190 mm

    Depth: 82 mm

    Water connection: G 3/8 A

    IP rating: IP25

    Temperature setting: 30-50 °C

    Colour: white

    Weight: 1.70 kg

    Energy efficiency class: A
